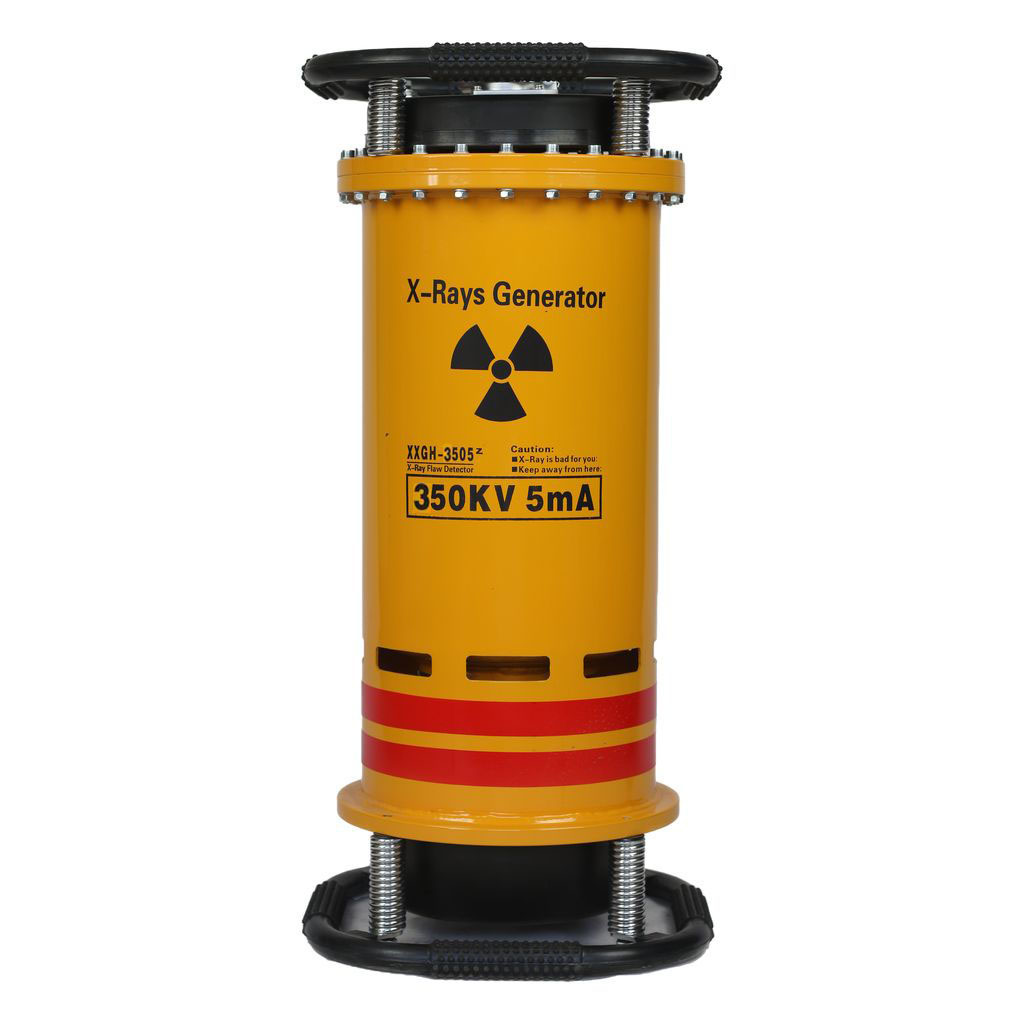

XXGH-3505Z Industrial Portable Panoramic X-ray Flaw Detector (NDT)

XXGH-3505Z is an advanced industrial portable panoramic X-ray flaw detector designed for high-precision non-destructive testing (NDT) in critical sectors as aerospace, shipbuilding, and pipeline inspection. Featuring an adjustable 200–350 kV output voltage, 52 mm penetration (A3 steel), 360*30° panoramic imaging, SF6 gas insulation. Leading manufacturers Huangshi Shang Fang.

The XXGH-3505Z model is an industrial-grade portable panoramic X-ray flaw detector designed for non-destructive testing (NDT) across various sectors, including aerospace, shipbuilding, and pressure vessel inspection.

Key Specifications of XXGH-3505Z
Technical Parameters
● Output Voltage: 180–350 kV (continuously adjustable)
● Power Supply: 220 ±10% VAC, 50 Hz
● Tube Current: 5 mA
● Focus Size: 1.0×6.0 mm.
● Max Penetration: 52 mm for A3 steel.
● Beam Angle: 30°×360° (panoramic).
● Cooling System: Forced air cooling.

Design Features

Portability: Compact generator dimensions (345×345×715 mm) and weight (36kg).

Durability: Ceramic X-ray tube for extended lifespan .

Gas Insulation: SF6 gas-insulated models for higher stability.

Safety: Complies with GBZ117-2006 standards, with interlocked lead doors and High-voltage time delay for enhanced operator radiation protection..

Applications
Welding inspection, internal defect detection in pipelines, and quality control for lightweight metals (e.g., aluminum alloys).

● Aerospace Industry: inspects weld seams and material integrity in aircraft components.
● Oil & Gas: Detects welding defects in pipelines and storage tanks.
● Automotive Manufacturing: Identifies internal flaws in vehicle components.
● Power Industry: Examines equipment in nuclear and power plants.

Wherever you are, we remain committed to delivering exceptional service and high-quality NDT solutions.
