Ultimate Guide to Syringe Leak Tester Methods & Equipment

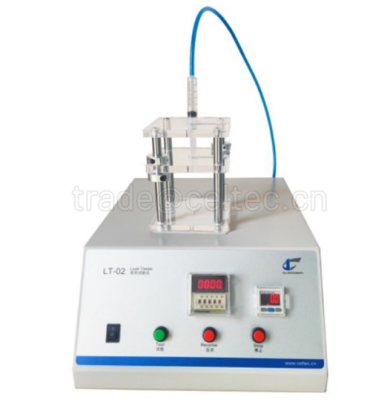

A syringe leak tester is a device designed to identify and quantify leaks in syringes by applying controlled testing conditions. It checks whether a syringe can maintain its vacuum or pressure integrity after being subjected to a specific test routine.

Introduction: The Importance of Syringe Leak Testing

Syringes, though small, are critical components in administering precise dosages of medication and fluids. A leak in a syringe not only poses a risk to the patient but also undermines the integrity of entire medical systems. This guide explores the methods and equipment used for syringe leak testing, highlighting the importance of accurate testing for both quality assurance and regulatory compliance.

What is a Syringe Leak Tester|、Plastics Testing factory?

A syringe leak tester is a device designed to identify and quantify leaks in syringes by applying controlled testing conditions. It checks whether a syringe can maintain its vacuum or pressure integrity after being subjected to a specific test routine. This is crucial since even tiny leaks can compromise the sterility of the contents, affect dosage accuracy, or lead to contamination.

How Does a Leak Tester Work?

The fundamental principle behind most syringe leak testers involves creating either a vacuum or pressure on the syringe and then monitoring the response over time. If there is a leak, the pressure differential will change, and the equipment's sensors capture these changes. Data is then analyzed—often with sophisticated software—to determine if the leak falls within acceptable limits.

Common Syringe Leak Testing Methods

Multiple leak testing methods are employed in the field, each with its unique advantages and applications. Below, we review three primary techniques.

Pressure Decay Testing

Pressure decay testing is perhaps the most common leak testing method. Here's how it works:

- How It Works: The syringe is pressurized to a defined level before isolating it. If a leak exists, the internal pressure will drop over time.

- Advantages: It is highly sensitive and capable of detecting minute leaks.

- Applications: Often used in high precision manufacturing where quality is of utmost importance.

Vacuum Decay Testing

Vacuum decay is similar in principle to pressure decay, only in reverse:

- How It Works: The syringe is first evacuated (i.e., a vacuum is created) and then isolated. A system that is airtight will maintain its vacuum; any leak manifests as an increase in pressure.

- Advantages: It is particularly effective for products that are designed to operate under negative pressure conditions.

- Applications: Common in settings where the final product is intended for vacuum-sensitive applications.

Bubble Testing

Bubble testing is a more visually intuitive method:

- How It Works: The syringe or part under test is submerged in a fluid, and air is applied. Bubbles emerging from the point of a leak indicate a breach in integrity.

- Advantages: It is simple, effective, and requires minimal equipment.

- Applications: Frequently used in both in-process inspections and final quality control.

Detailed Equipment Guide

Understanding the equipment used in leak testing is just as crucial as understanding the methods. A typical syringe leak tester comprises several key components that work in unison to ensure accurate readings.

Key Components of Syringe Leak Testers

Every high-quality syringe leak tester includes precision-engineered sensors, robust software, and reliable transducers.

Sensors and Transducers

Sensors are the heart of any leak tester. They detect minute changes in pressure or vacuum levels and convert these changes into digital signals. Transducers then help in accurately measuring the extent of any leak:

- Sensitivity and Accuracy: High-end sensors provide outstanding sensitivity, ensuring that even microscopic leaks are detected.

- Durability: Given that these devices are used in environments where precision is key, robust design and construction ensure longevity and reliability.

Software and Data Analysis Tools

The captured data is only as good as the analysis that follows. Advanced software enables real-time monitoring and analysis of test results:

- User-Friendly Interface: Modern software typically offers a graphical user interface (GUI) that displays trends and critical values, making it easier for users to interpret data.

- Automation and Reporting: Automated features not only save time but also reduce the possibility of human error by ensuring consistent test routines and generating comprehensive reports.

Setting Up Your Testing Environment

Creating a controlled environment for leak testing is essential to ensure accurate and repeatable results. Factors to consider include:

- Ambient Conditions: Temperature, humidity, and even vibrations can affect sensor readings. It's important to control these conditions.

- Maintenance and Calibration: Regular maintenance and calibration of both the sensors and the testing environment help keep the equipment running at peak performance.

Advantages and Limitations of Each Testing Method

While each method has its strengths, there are also challenges that one must consider. Let's look at how pressure, vacuum, and bubble testing stack up against each other.

Comparison of Testing Methods

- Pressure Decay Testing:

  - Pros: High sensitivity to leaks, accurate detection, broad application in quality control.

  - Cons: Requires precise control of pressure settings; environmental factors may influence results.

- Vacuum Decay Testing:

  - Pros: Excellent for detecting leaks in systems designed to operate under vacuum, highly reproducible.

  - Cons: The process may be slower compared to pressure decay, and vacuum systems need rigorous sealing.

- Bubble Testing:

  - Pros: Visually simple and immediate leak detection; low initial investment and easy to set up.

  - Cons: Less precise than quantitative methods, subjective interpretation can lead to inconsistent results.

Factors to Consider When Choosing a Method

Choosing the right testing method depends on several factors:

- Type of Syringe and Application: The intended use of the syringe (e.g., high-pressure injection, delicate dosing) can significantly influence the choice.

- Regulatory Requirements: Medical devices must meet stringent regulatory standards. The chosen method should comply with these regulations.

- Budget and Throughput: While high-end methods provide the most precise data, they may also be costlier and slower. Understanding the balance between cost and precision is key.

Conclusion

Syringe leak testing is more than just a checkpoint in quality control—it is a critical safeguard for patient safety, regulatory compliance, and operational excellence in the medical device manufacturing process. By understanding the various testing methods, equipment components, and regulatory standards, manufacturers and medical professionals can ensure that their products not only meet but exceed the highest standards of safety and performance. With innovations in technology and the integration of advanced analytics, the future of syringe leak testing looks promising, offering faster, more accurate, and more reliable results. Adopting these best practices and investing in continuous improvement are key to staying ahead in a rapidly evolving field.
