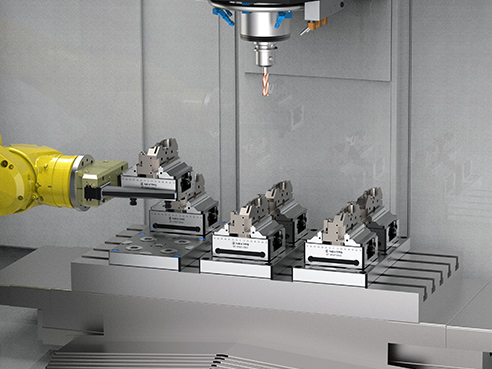

Production Line with Pneumatic Quick-Change Base Plates and Self-Centering Vises
The self-centering products’ repeat positioning accuracy through its tight tolerance fit, play a role in high efficient centering, positioning and fixing for automatic product centering in clamping
In modern manufacturing, efficiency and precision are paramount. Two innovative solutions—Pneumatic Quick-Change Base Plates and Self-Centering Vises—are transforming production workflows by streamlining operations and enhancing accuracy.
The Pneumatic Quick-Change Base Plate is a modular tooling system that allows for rapid and secure switching of workpieces or fixtures. Using pneumatic technology, it enables operators to lock and release components with a single action, eliminating the need for manual adjustments. This system is ideal for high-mix, low-volume production environments where quick changeovers are essential.
Changeovers are completed in seconds, minimizing production interruptions
The system ensures consistent positioning, reducing errors and improving quality
Simplifies complex setups, reducing operator fatigue and training time
Compatible with a wide range of fixtures and workpieces, making it adaptable to various production needs
The Self-Centering Vise is a clamping tool designed to automatically center workpieces with precision. It features dual jaws that move symmetrically, ensuring the workpiece is perfectly aligned without manual adjustment. This tool is particularly useful for machining operations that require high accuracy and repeatability.
Automatically centers workpieces, eliminating misalignment issues
Reduces setup time by removing the need for manual centering
Suitable for a wide range of workpiece shapes and sizes
Ensures uniform clamping pressure, enhancing machining accuracy
When used together, these two systems create a seamless and efficient production environment. The Pneumatic Quick-Change Base Plate allows for rapid fixture changes, while the Self-Centering Vise ensures precise workpiece alignment. This combination significantly reduces setup times, improves operational efficiency, and enhances product quality.
For manufacturers looking to optimize their production lines, integrating Pneumatic Quick-Change Base Plates and Self-Centering Vises is a strategic move toward achieving faster, more accurate, and cost-effective manufacturing processes.
