Marine Battery Explosion: A Real-World Case Study & Why Constant Voltage Charging is Crucial for Safety







The confined spaces of a boat can amplify the dangers of seemingly minor equipment malfunctions. A stark reminder of this is the recent incident involving a lead-acid battery explosion on a Shanghai Yuansheng Shipping vessel. This real-world case study underscores the critical importance of battery safety in marine applications, particularly when it comes to charging practices. Let's delve into the details of this incident, understand the root causes of lead-acid battery explosions, and learn why using the correct type of charger – specifically a constant voltage charger – is paramount for safety and battery longevity.



The Shanghai Yuansheng Shipping Battery Explosion Incident: A Case Study




In February, HZH Marine received an urgent report from Shanghai Yuansheng Shipping regarding a battery explosion on their oil tanker, the "Gangsheng" vessel. Just two months into service, a 12V 210Ah marine battery had suffered a catastrophic failure – its casing爆裂, causing injury to a crew member.

Initial Response and Investigation:

Recognizing the severity of the situation – battery explosions are rare and dangerous – HZH Marine immediately dispatched a team of technical experts to Fu'an City, Fujian, to investigate on-site. Their findings revealed a chain of events leading to the explosion:

• Battery Setup: Two 210Ah batteries were connected in series to create a 24V power supply for essential communication equipment in the wheelhouse. A second identical battery bank was also in use.

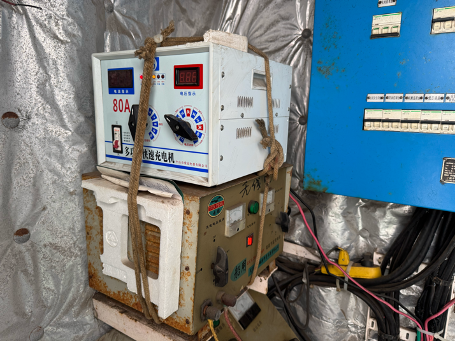

• Charging System: Crucially, the exploded batteries were being charged by a constant current charger from Zhongshan Aigao Electric Co., Ltd. This charger, designed with voltage档位 selection and a broken ammeter, was later identified as a key contributing factor. A second battery bank used a Wuhan Yunpeng Transformer Co., Ltd. charger.
• Maintenance Practices: The crew member responsible for battery maintenance, Mr. Lin, followed instructions from a previous engineer to recharge the batteries every 20-30 days for 8-12 hours, depending on the season. However, he lacked detailed technical understanding of battery maintenance.
• The Explosion: Mr. Lin, working nearby, heard a sudden explosion and discovered the two batteries had burst open. He sustained minor burns to his fingers while attempting to handle the damaged batteries without protective gear.


Root Cause Analysis:

HZH Marine's expert analysis pinpointed the primary cause of the battery explosion: overcharging due to an incompatible constant current charger.

• Constant Current Charger Misuse: The investigation revealed that the charger used was likely an unregulated constant current charger, or a faulty one with inaccurate voltage regulation. These types of chargers are unsuitable for modern maintenance-free lead-acid batteries.
• Overcharging and "Boiling Dry": The constant current charger, not properly limiting voltage, forced excessive current into the batteries, especially after they were deeply discharged by constant load. This led to severe overcharging, causing the batteries to "boil dry" – the electrolyte evaporated due to excessive heat and gassing.
• Electrolyte Concentration and Corrosion: As the water in the electrolyte boiled off, the sulfuric acid concentration increased dramatically, becoming highly corrosive. Mr. Lin's minor burns were attributed to contact with this concentrated acid.

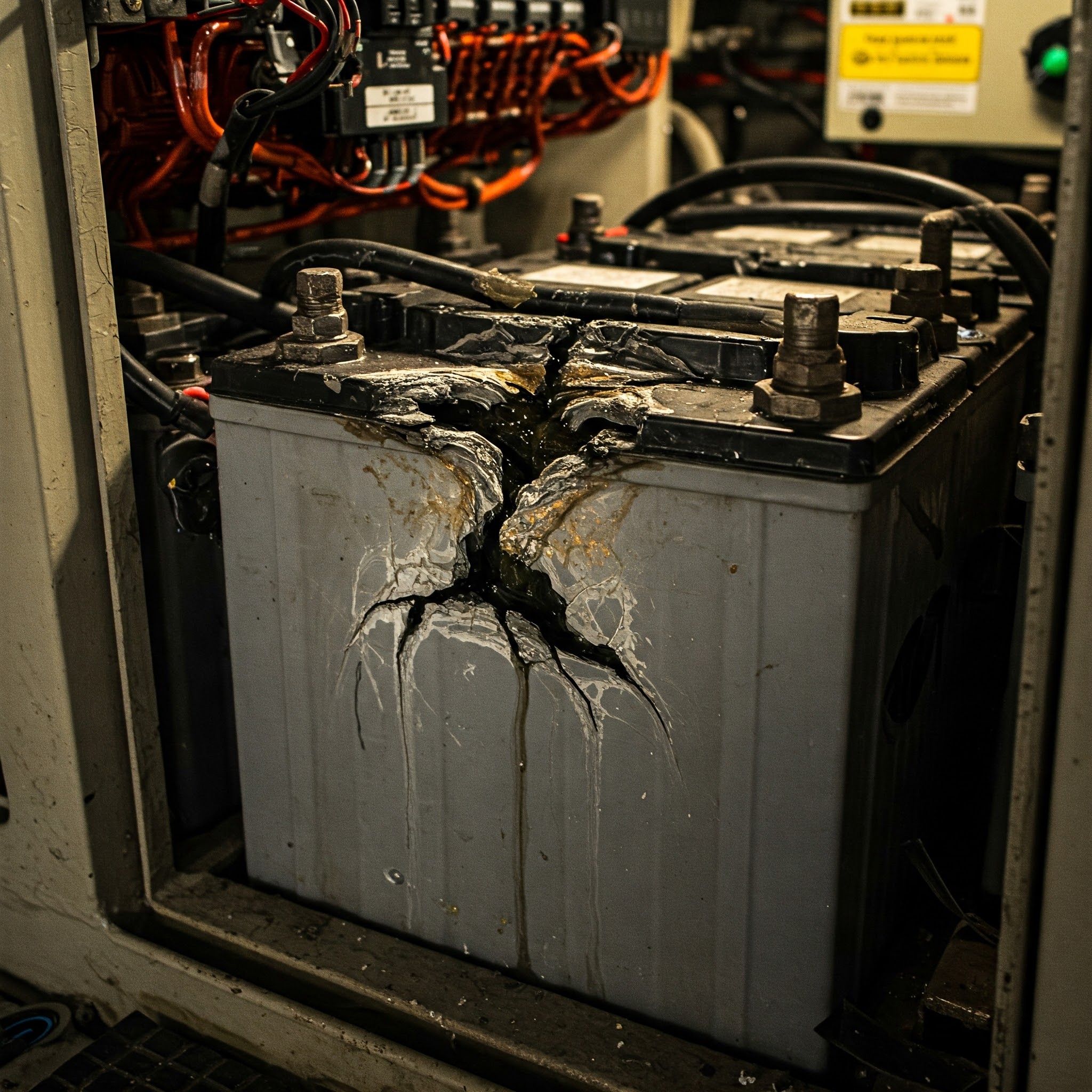

• Thermal Runaway and Explosion: The extreme overcharging and internal heat buildup led to thermal runaway. The battery case deformed, and eventually, the pressure from excessive gassing caused the battery to explode, rupturing the casing and battery top.
• Chronic Undercharging (Contributing Factor): While overcharging was the immediate cause of the explosion, the report also indicated the batteries were under constant load discharge and frequently deeply discharged. This chronic undercharging, coupled with infrequent and improper charging, further stressed the batteries and shortened their lifespan, making them more vulnerable to failure when improperly charged.



Why Constant Current Chargers are a Risk for Modern Marine Batteries


The Shanghai Yuansheng Shipping incident highlights a critical safety concern: using constant current chargers with modern maintenance-free lead-acid batteries is dangerous and can lead to explosions.

The Problem with Constant Current Charging:

• Unregulated Voltage: Constant current chargers are designed to deliver a fixed current, regardless of the battery's voltage. They do not automatically reduce the charging current as the battery reaches full charge.
• Overcharge Risk: For maintenance-free batteries, which are designed to be charged at a controlled voltage, constant current charging inevitably leads to overcharging.
• Gassing and Heat: Overcharging forces excessive current into a fully charged battery, causing electrolysis of water in the electrolyte, producing hydrogen and oxygen gas (highly explosive). This process also generates significant heat.
• Battery Damage and Explosion: The combination of gassing, heat buildup, electrolyte loss, and internal pressure increases the risk of battery deformation, acid leaks, and ultimately, explosion.
• Outdated Technology: Constant current chargers are largely obsolete for modern lead-acid batteries, especially maintenance-free types. They were primarily used with older "flooded" batteries that required regular water replenishment.



The Safety and Efficiency of Constant Voltage Chargers


In contrast to constant current chargers, constant voltage chargers are the safe and recommended choice for modern marine lead-acid batteries, especially maintenance-free types.


Advantages of Constant Voltage Charging:

• Voltage Regulation: Constant voltage chargers maintain a constant voltage across the battery terminals, typically around 13.8V for 12V batteries in float charge (maintenance) mode, and around 14.4V-14.7V for bulk charging.
• Current Tapering: A constant voltage charger automatically reduces the charging current as the battery voltage rises and approaches full charge. This prevents overcharging.
• Safe Charging: By limiting voltage and tapering current, constant voltage chargers prevent excessive gassing and heat buildup, significantly reducing the risk of battery damage and explosion.
• Optimal Battery Life: Proper constant voltage charging maximizes battery lifespan by preventing overcharging and sulfation (a common issue with chronic undercharging).
• Maintenance-Free Battery Compatibility: Constant voltage chargers are specifically designed for maintenance-free (sealed) lead-acid batteries, as well as flooded batteries.
• Float Charge Capability: Many constant voltage chargers feature a "float charge" mode, which maintains the battery at a fully charged state without overcharging, ideal for standby power applications.



HZH Marine's Commitment to Customer Safety and Service


The Shanghai Yuansheng Shipping incident highlights HZH Marine's dedication to customer safety and responsive after-sales service. Upon receiving the report, HZH Marine:

• Acted Immediately: Recognizing the potential danger, HZH Marine responded within hours, assembling an expert team and dispatching them to the vessel overnight.

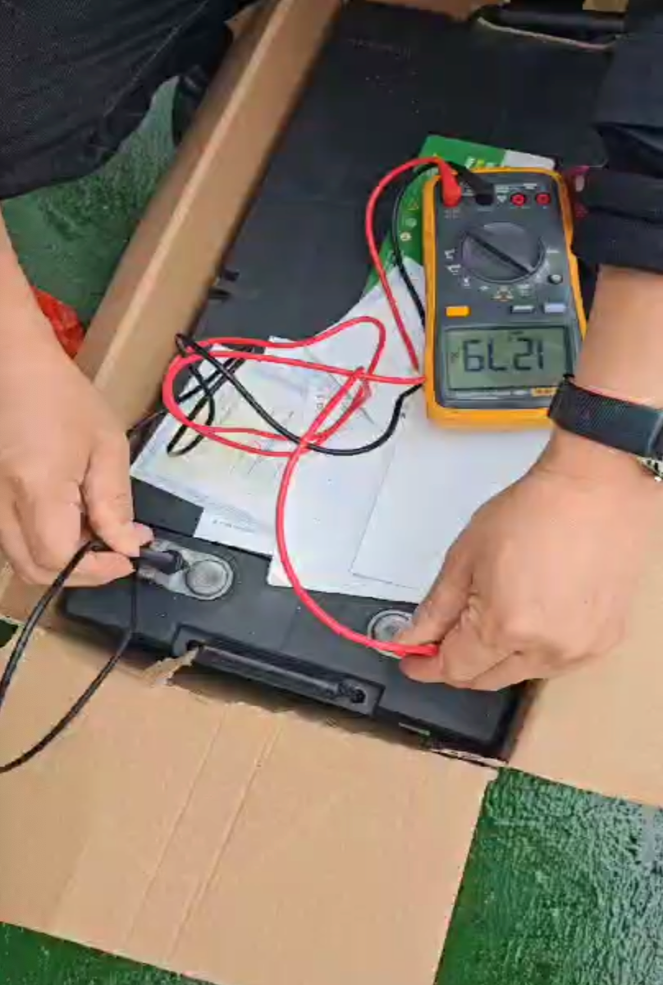

• On-Site Investigation: HZH Marine technicians conducted a thorough on-site investigation, identifying the root cause of the explosion and assessing the overall battery system.

• Expert Recommendations: Based on their findings, HZH Marine provided clear and actionable recommendations to the customer, including:

  • Immediate Replacement of Charger: Replace the constant current charger with a qualified constant voltage, current-limited charger with a voltage limit of 28.4V-28.8V for the 24V battery bank (14.2V-14.4V per 12V battery).
  • Voltage Monitoring: Install a 24V digital voltmeter to allow for easy monitoring of battery voltage and charging status.
  • Battery Disconnect Switch: Install a (disconnect switch) to prevent parasitic drain and over-discharge when the radio system is not in use, extending battery life.
  • Over-Discharge Protection (Optional): Consider an over-discharge protection device or alarm to prevent deep discharge damage.
  • Improved Maintenance Procedures: Emphasize the importance of regular battery checks and adherence to proper maintenance guidelines.
  • Ventilation: Ensure adequate ventilation in the battery compartment, especially during charging.
  • Safety Precautions: Highlight the need for personal protective equipment (gloves, eye protection) when handling batteries, especially after an incident.

• Proactive Customer Support: HZH Marine not only addressed the immediate problem but also provided guidance to prevent future incidents and improve overall battery system safety and longevity.



Conclusion: Prioritizing Safety with Correct Charging and Expert Support


The Shanghai Yuansheng Shipping battery explosion serves as a critical lesson in marine electrical safety. Using the wrong type of battery charger – particularly constant current chargers with maintenance-free batteries – can have dangerous consequences, including battery explosions and injuries.

Key Takeaways for Marine Battery Safety:

• Always use constant voltage, current-limited chargers for modern marine lead-acid batteries.
• Ensure chargers are properly rated for your battery type and voltage.
• Regularly monitor battery voltage and charging status.
• Implement proper battery maintenance procedures.
• Prioritize ventilation in battery compartments.
• Seek expert advice from reputable marine electrical suppliers like HZH Marine.

By understanding the risks of improper charging and choosing the right equipment and practices, you can significantly enhance the safety and reliability of your boat's electrical system, protecting your vessel and crew.



---
